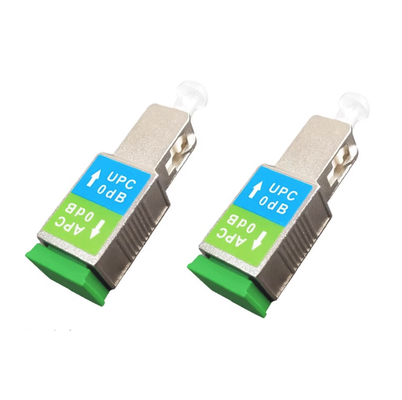

Singlemode 0dB Male SC/UPC to Female SC/APC Optical Fiber Adapter Connector

  • Singlemode 0dB Male SC/UPC to Female SC/APC Optical Fiber Adapter Connector
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-ATT-SCAF-SCUM-xx
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, plastic module, carton box, wooden pallet
Delivery Time 3~5 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 50,000 pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector Type SC Attenuator Range 1dB~30dB
Attenuator Type Male To Female Type Body Material Metalic
Wave Length 1310, 1490, 1550, 1620nm Return Loss 55dB For UPC, 65db For APC
Polarization Dependent Loss Less Than 0.1dB P/N KCO-ATT-SCAF-SCUM-xx
High Light

APC Fiber Adapter Connector

,

UPC Fiber Adapter Connector

,

Optical Fiber Adapter Connector
Leave a Message
Product Description

Singlemode 0dB Male SC/UPC to Female SC/APC Optical Fiber Adapter Connector



Introduce:

- Fixed Attenuator is a precise passive component which provides different fixed attenuation value to meet optical fiber projects’ demands.
- Our fixed attenuator is made of high precision adapter and features high attenuation precision and good performance.

- SC fiber optic attenuator includes SC single mode female to female fiber optic attenuator from 0dB to 30dB.

- This type of fiber optic attenuator adapter can do Male SC UPC to Female SC APC or Male SC APC to Female SC UPC.

- Use to connect SC fiber optic pigtail or patch cables to reduce the power of signal at a certain attenuation.

- SC fiber optic attenuator is a passive device used to reduce the amplitude of a light signal without significantly changing the wave form itself.

- This is often a requirement in Dense Wave Division Multiplexing(DWDM) and Erbium Doped Fiber Amplifier (EDFA) applications where the receiver can’t accept the signal generated from a high-power light source.


Applications
- Optic fiber Communication Systems
- Optical Fiber Sensor
- Optical Fiber Test Equipment
- Optic fiber CATV
- Erbium Doped Fiber Amplifiers (EDFA)

- Dense Wave Division Multiplexers (DWDM)

- Overpowered fiber optic systems

- Fiber optic communication systems.


Characteristics:
- Attenuator range: 1dB to 30dB.
- Metal ion doped fiber.
- High-power light source durability.
- Wavelength independence.
- Attenuation levels ranging from 1dB to 30dB, with standard and premium tolerances, plus custom configurations.
- 100 times of insertion and removal without false labeling.
- Effectively avoiding damage.
- Ceramic core,telecom grade standard setting.
- Metal texture.

Specification:

Parameter Value Unit
Operating Wavelength 1310/1550 nm
Tolerance for 1~5 dB Attenuation ± 0.5 dB
Tolerance for 6~30 dB Attenuation ± 10 %
Return Loss > 65 dB
Operating Temperature -40 to +80 C
Polarization Dependent Loss ≤ 0.1 dB
Mating Durability ≥ 1000 cycle
Transfer Mode SM
Connector Gender Fiexd Male to Female


Features:

- High precision.

- Good stability.

- Small size and bulk.

- Easy to operate.

- Data Center Infrastructure

- Storage Area Network and Fiber Channel

- Based on IEC/Telcordia Bell GR-326-Core Tested

- High-power light source durability

- Wavelength independence

- Attenuation levels ranging from 1dB to 25dB

- 1310nm, 1550nm and 1310/1550nm dual wave lengths



Relation products:

Singlemode 0dB Male SC/UPC to Female SC/APC Optical Fiber Adapter Connector 0



OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.



Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.



Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
