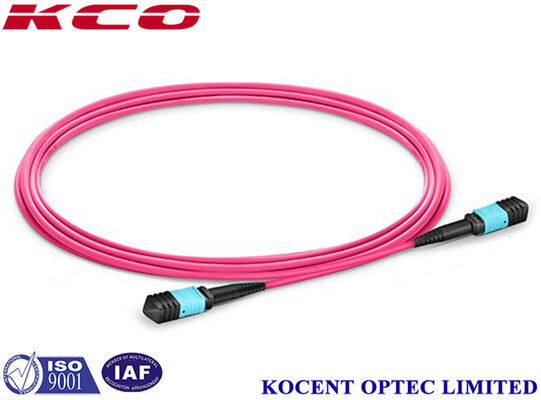

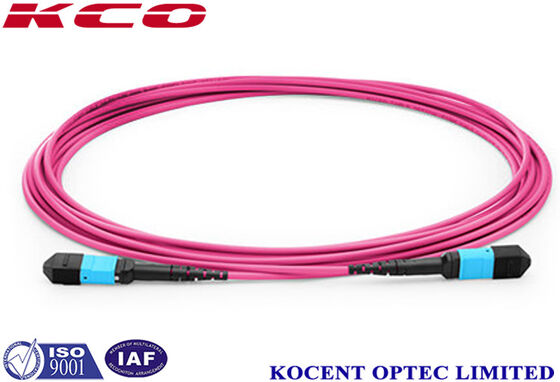

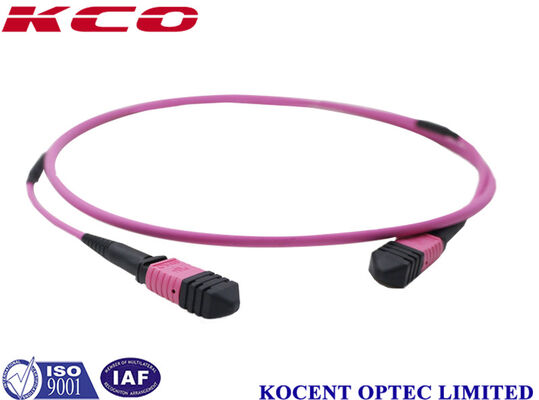

0.2dB Insertion Loss MPO MTP Patch Cord 3m 5m 10m 50 / 125 Core LSZH Violet

  • 0.2dB Insertion Loss MPO MTP Patch Cord 3m 5m 10m 50 / 125 Core LSZH Violet
  • 0.2dB Insertion Loss MPO MTP Patch Cord 3m 5m 10m 50 / 125 Core LSZH Violet
  • 0.2dB Insertion Loss MPO MTP Patch Cord 3m 5m 10m 50 / 125 Core LSZH Violet
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number MPO-MPO-12fo-OM4-3.0mm-Violet
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden roll
Delivery Time 2~5 days after get payment
Payment Terms Western Union, T/T, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector MPO Mode Muti Mode OM4
Cover PVC, LSZH Insertion Loss 0.2dB
Return Loss 55dB Diameter 2.0mm, 3.0mm
Length 1, 3, 5, 7, 10, 15, 20, ... Core 50/125
High Light

breakout fiber optic cable

,

fiber optic breakout cable
Leave a Message
Product Description

MPO OM4 Fiber Optic Patch Cord Cable Jumper 50/125 3m 5m 10m 20m 50m LSZH Violet


Description:
- Kocent Optec Limited provides OEM service for all kinds of fiber optic patch cables, including common type of FC, LC, SC, ST, and MT-RJ, E2000, MPO, MTP, ESCON, FDDI, DPLC, LC Uniboot, SC Uniboot. Specially in MPO OM4 Fiber Optic Patch Cord.

- MPO/MTP is the high dense degree of optical fiber pre-connect system,which is generally used in three areas.

- The data center application with high dense degree environment
- The optical fiber to the building
- The internal connector application in fiber equipment such as Splitter, 40G QSFP / 100G CFP.
- MPO/MTP trunk cables are used to interconnect cassettes, panels or ruggedized MPO fan-outs, spanning MDA, HAD and EDA zones, and easy to rapid deployment of high density backbone cabling in data centers and other high fiber environments reducing network installation or reconfiguration.
- MPO/MPT trunk cables using a compact and rugged microcable structure, according to different colors divided into SM, MM and 10G MM.
- The fiber ranges from 12 to 144, MTP polarity options are TIA way is Style A(up), Style B(down) and Style C(up/up).
- The cable length belongs to a custom product, please kindly email your requirements to us!



Features
- With 12-fiber and 24-fiber MPO/MTP connector standard
- Available in OS1/2, OM2, OM3 and OM4
- Available in FC,LC, SC, ST, MU, and MTP
- Interface polished type has PC, UPC and APC
- Available in 12 / 24 / 36 / 48 / 72 / 96 / 144-fibers
- 100% factory tested
- Discrete connectors are heat-cured and use ceramic ferrules and sleeves
- Fan-out fibers from MPO/MTP connectors into individual simplex or duplex
- Customized for length, staggering, connector type, breakout style, fiber count, and labeling fiber



Pre-terminated MPO/MTP Technology-Polarity:
The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.

0.2dB Insertion Loss MPO MTP Patch Cord 3m 5m 10m 50 / 125 Core LSZH Violet 0

0.2dB Insertion Loss MPO MTP Patch Cord 3m 5m 10m 50 / 125 Core LSZH Violet 1

0.2dB Insertion Loss MPO MTP Patch Cord 3m 5m 10m 50 / 125 Core LSZH Violet 2



About OM4 fiber:
- OM4 is laser-optimized 50um fiber having 4.7GHz*km EMB bandwidth designed for 10 Gb/s, 40 Gb/s, and 100 Gb/s transmission.
- OM4 fiber has been on the market since 2005, sold as premium OM3 or OM3 fiber. The OM4 cable designation standardizes the nomenclature across all manufacturers so that the customer has a clearer idea of the product that they are buying.
- OM4 fiber is completely backwards compatible with OM3 fiber and shares the same distinctive aqua jacket.
- OM4 was developed specifically for VSCEL laser transmission and allows 10 Gig/second link distances of up to 550 Meters (compared to 300M with OM3) and offers an Effective Modal Bandwidth (EMB) of 4700 MHz-km.



Differents between OM3 and OM4:

- OM3 and OM4 cables are both types of graded-index multimode fiber optic cable, specified under IEEE and TIA/EIA standards.

- OM3 and OM4 are laser-optimized multimode fiber (LOMMF) cables, specially designed to work with the high speed networks we have today.

- While they have very similar constructions, OM4 is able to perform over longer distances due to its 4700 megahertz bandwidth versus the 2500 megahertz bandwidth of OM3 cabling. OM4 is one of the fastest fiber optic cables available, and is such new technology that the standard was ratified by the TIA/EIA in August 2009; the IEEE 802.3ba 40G/100G Ethernet standard covering OM3 and OM4 was ratified as recently as June 2010.

- Not only do they exhibit great performance, but OM3 and OM4 multimode fiber optic cables are cost-effective fiber optic cabling options as well.

- By using these top of the line fiber optic cables, the secured data center is not only performing to its fullest capabilities now, but should meet the military’s high performance standards for years to come.


Product photos:
0.2dB Insertion Loss MPO MTP Patch Cord 3m 5m 10m 50 / 125 Core LSZH Violet 3


Specification:

Parameters Standard Fiber Cable Assemblies
Fiber Type SM(G.652/G.657A) MM(OM1/OM2/OM3)
Jacket Materials LSZH/OFNR/PVC
Connector Type SC/LC/ST/LC/MU/MTRJ/MPO/E2000
Ferrule Materials Ceramic
Testing Wavelengths 1310±30/1550±30nm 850±30/1300±30nm
Insertion Losss(dB)
TIA/EIA-455-107		 ≤ 0.3dB
(PC/UPC/APC)		 ≤ 0.3dB
(PC/UPC)
Return Loss(dB)
TIA/EIA-455-107		 ≥45dB(PC/UPC)
≥55dB(APC)		 ≥35dB(PC/UPC)
Exchangeability ≤ 0.2dB
Cable Assemblies Pigtail/Simplex/Duplex/Fan-out Patchcord
Operating Temperature (° C) -10~ + 70
Storage Temperature (° C) -40 ~ +85
Package 1unit/bag
*All values specified are with connectors.


OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
0.2dB Insertion Loss MPO MTP Patch Cord 3m 5m 10m 50 / 125 Core LSZH Violet 4
